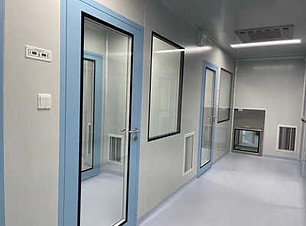

clean room doors
Clean room door is suitable for clean room workshops, such as hospitals, pharmaceutical factories, food factories and other occasions with clean requirements. The door body are made by integrated mold, seamless and corrosion-resistant.
Clean room door frame is flushed with walls perfectly, which has good overall performance, with the advantages of beautiful appearance, flatness, high strength, no dust accumulation, easy cleaning, convenient and fast installation and good sealing performance.
clean room doors specification
technical information:
​
-
door frame:
1.2/1.5mm powder coated steel sheet / 1.2mm 304 SS
-
door leaf:
0.8/1.0mm powder coated steel sheet / 0.8mm 304 SS
-
door leaf thickness: 50mm
-
door frame thickness: 50mm~400mm+
-
match to sandwich panel wall and concrete brick wall
-
door leaf core materials:
paper honeycomb / aluminum honeycomb
5mm double tempered hollow glass,
size W400×H600, black color, built-in desiccant
angle corner, arc corner
-
window frame: aluminum/stainless steel
-
lock: stainless steel split handle lock
-
hinge: 3.0mm 304 stainless steel
-
door color : as request
-
accessories: 3.0mm stainless steel hinge, automatically dust washer, thumb latch
-
optional: door closer, interlock, louver, louver filter​, access control system, anti-collision protection panel
-
connection way:
tongue-and-groove joint / built-in alum. joint
-
minimal order quantity: any quantity required
-
lead time: within 20 days
-
packing: by wooden case
-
application: this steel door is suitable for sandwich panel clean room and thicker concrete brick house.
match to handmade panel
match to machine made panel
Steel Door Standard Size:
​
-
Single Doors: W800×H2100 W900×H2100 W1000×H2100
-
Unequal Doors: W1200×H2100 W1500×H2100
-
Equal Double Doors: W1200×H2100 W1500×H2100 1800×H2100
-
Customized door size available
stainless steel door specification
technical information:
​
-
door frame: 1.2mm 304 stainless steel
-
door leaf: 0.8mm 304 stainless steel
-
door leaf thickness: 50 mm
-
door frame thickness: 50 mm~400 mm+
-
match to sandwich panel wall and concrete brick wall
-
door leaf core materials:
paper honeycomb / aluminum honeycomb
-
view window:
5mm double tempered hollow glass,
size W400×H600, black color, built-in desiccant
angle corner, arc corner
-
window frame: aluminum/stainless steel
-
lock: stainless steel split handle lock
-
hinge: 3.0mm 304 stainless steel
-
door color : brushed stainless steel
-
accessories: 3.0mm stainless steel hinge, automatically dust washer, thumb latch
-
optional: door closer, interlock, louver, louver filter​, access control system, anti-collision protection panel
-
connection way:
tongue-and-groove joint / built-in alum. joint
-
minimal order quantity: any quantity required
-
lead time: within 20 days
-
packing: by wooden case
-
application: this stainless steel door is suitable for sandwich panel clean room and thicker concrete brick house.
fire door, escape door, emergency door, safety door specification
technical information:
​
-
door frame:
1.5/1.2mm powder coated steel sheet
1.2mm SS304 stainless steel
-
door leaf: 1.0/0.8mm powder coated steel sheet
-
door leaf thickness: 50mm
-
door frame thickness: 50mm~400mm+
-
match to sandwich panel wall and concrete brick wall
-
match to handmade panel and machine made panel
-
door leaf core materials:
paper honeycomb / aluminum honeycomb
-
view window:
5mm double tempered hollow glass,
size 1700H*700W, 1700H*500W or customized​
black color, built-in desiccant
angle corner, arc corner
-
window frame: aluminum/stainless steel
-
lock: escape push-pull lock
-
door color : as request
-
accessories: 3.0mm stainless steel hinge, automatically dust washer, thumb latch
-
connection way:
tongue-and-groove joint / built-in alum. joint
-
minimal order quantity: any quantity required
-
lead time: within 20 days
-
packing: by wooden case
-
application: this steel door is used as the emergency exit for clean room projects like hospitals, pharmaceutical workshops, food factory etc.
Medical airtight sliding door specification
technical information:
​
-
door leaf :
1 mm powder coated steel sheet
1 mm SS304 stainless steel
-
door leaf thickness: 41 mm
-
door frame thickness: 50mm~400mm+
-
match to sandwich panel wall and concrete brick wall
-
match to handmade panel and machine made panel
-
door leaf core materials:
paper honeycomb/aluminum honeycomb/polyurethane
-
view window:
5mm double tempered hollow glass,
size 300W*200H, 400W*300H or customized​
black color, built-in desiccant
angle corner, arc corner
-
window frame: aluminum/stainless steel
-
lock: electrical motor controlled or manual type
-
door color : as request
-
optional: 2PB/3PB/4PB radiation proof door
-
minimal order quantity: any quantity required
-
lead time: within 20 days
-
packing: by wooden case
-
application: this airtight sliding door is mainly used in hospital or operation room.
